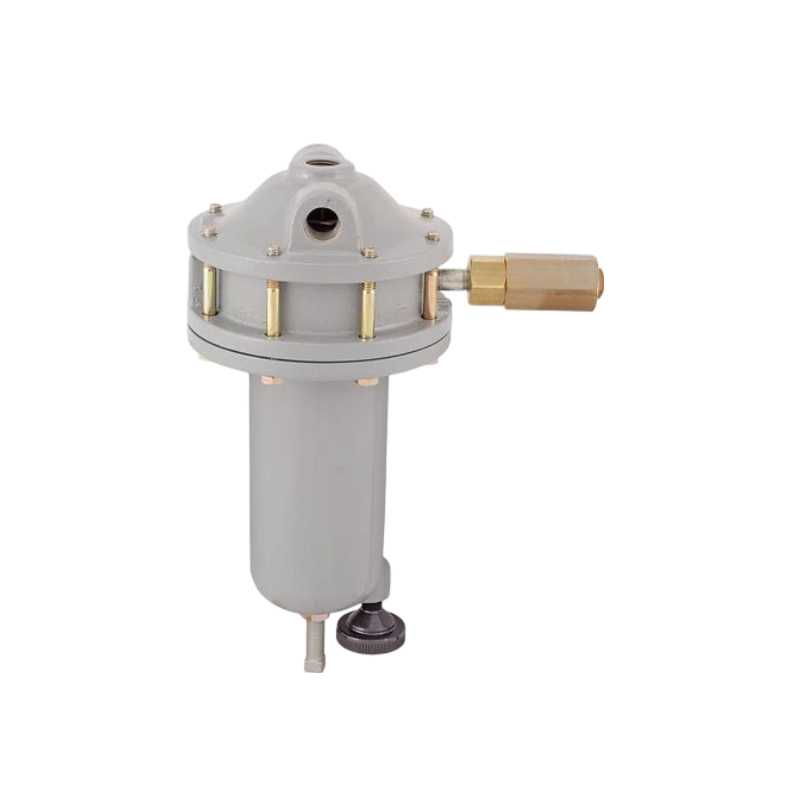

Fisher 61 Series Pilots
Fisher 61 Series pilots are used with Types 1098-EGR and EZL regulators, and their counterparts are used with 99 Series regulators and are available in a variety of styles – low pressure (L), low pressure and wide proportional band (LE), low pressure and narrow proportional band (LD), high pressure (H), and extra-high pressure (HP). Pilot-operated regulators use inlet pressure as the operating medium, which is reduced through pilot operation to load the actuator diaphragm.
Features
1.Standard and High-Temperature Materials Available
2.Wide Range of Available Constructions
3.Highly Configurable for a Variety of Applications
4.Includes Type P594-1 Filter
Specifications
| Available Constructions | Type 61L: Low-Press Pilot Type 61LD: Low-Press Pilot w/Narrowing Proportional Band Type 61LE: Low-Press Pilot w/Broadened Proportional Band Type 61H: High-Press Pilot Type 61HP: Extra High-Press Pilot |
Maximum Inlet Pressure | Types 61L, 61LE, and 61H: 300 psig / 20.7 bar Type 61LD: 160 psig / 11.0 bar Type 61HP: 600 psig / 41.4 bar |
Outlet Pressure Registration | 0 to 300 psig / 0 to 20.7 bar |
Maximum Spring Case Pressure for Pressure Loading | Types 61L, 61LD, and 61LE: 25 psig / 1.7 bar Type 61H: 72 psig / 5.0 bar Type 61HP: 100 psig / 6.9 bar |
Material Temperature Capabilities | Standard Elastomers: -20° to 150°F / -29° to 66°C High-Temp Elastomers: 0° to 300°F / -18° to 149°C, except 0° to 200°F / -18° to 93°C for water service |
Pressure Connection | 1/4 NPT |
Approximate Weight | 2 pounds / 1 kg |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
