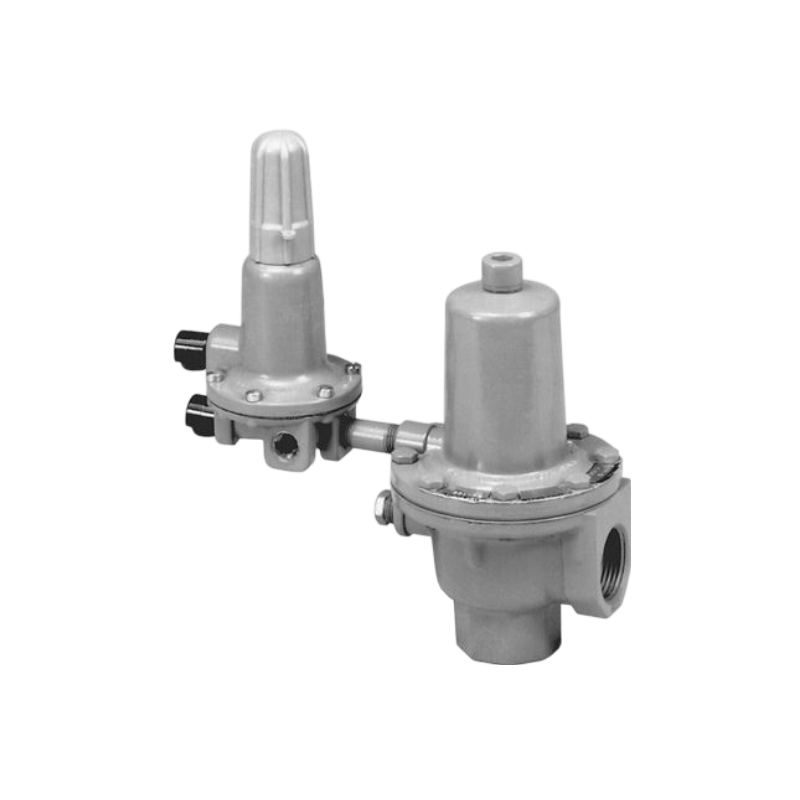

Fisher Type 289P Relief Valve or Backpressure Regulator
Fisher Type 289P pilot-operated relief valve is used to provide over pressure protection for downstream systems suitable for service on natural gas, air, propane, or any other operating medium not corrosive to the internal parts. Smooth opening action reduces system pressure surges during emergency action. Little buildup over set pressure is required to completely open the main valve for big relief capacity. The external control line provides quick, accurate pressure registration.
Features
1.Economical
2.High Relief Capacity with Low Buildup
3.Accurate
4.Fast Reseat After Operation
5.Ease of Maintenance
6.Rugged Construction
7.Corrosion Resistant Fasteners
8.Full Usable Capacity
Specifications
| Body Sizes and End Connection Styles | 1 or 2 NPT |
Maximum Relief (Inlet) Pressure | 1 NPT: 50 psig / 3.4 bar over relief set pressure or 110 psig / 7.6 bar, whichever is lower 2 NPT: 15 psig / 1.0 bar |
Relief Set Pressure Range | 1 NPT: 10 to 100 psig / 0.69 to 7.0 bar in three ranges 2 NPT: 14-inches w.c. to 10 psig / 35 mbar to 0.69 bar in two ranges |
Pressure Registration | External |
Temperature Capabilities | With Nitrile (NBR): -20 to 180°F / -29 to 82°C With Fluorocarbon (FKM): 0 to 300°F / -18 to 149°C |
Approximate Weights | 1 NPT: 5 pounds / 2.3 kg 2 NPT: 15 pounds / 6.8 kg |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
