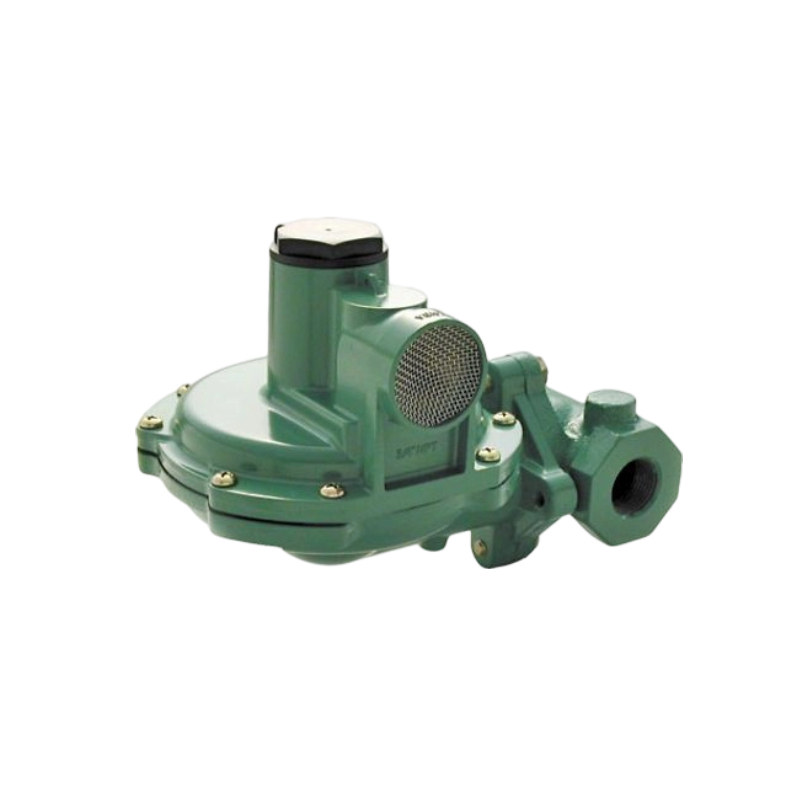

Fisher HSRL Series Second-Stage Regulators
HSRL Series second-stage regulator is an Underwriters Laboratories (UL) listed regulator designed for two-stage LP-Gas systems. With a capacity of up to 2 600 000 BTU/hr / 29,27 SCMH, the HSRL Series is ideal for use in commercial applications. The unit is designed to reduce the outlet pressure from a first-stage regulator (usually 10 psig to 11-inches w.c. / 0,69 bar to 27 mbar). Screened drip-lip vents oriented over the inlet are standard.
Features
1.20-Year Recommended Replacement Life
2.Improved Regulation
3.Overpressure Protection
4.Corrosion Resistance
5.Positive Drainage
6.UL Listed
Specifications
Body Sizes and End Connection Styles (inlet x outlet) | 3/4 x 3/4, 3/4 x 1, or 1 x 1-inch threaded NPT Globe Body |
Maximum Inlet Pressures | Maximum Inlet Pressure: 10 psig / 0.69 bar Emergency Inlet Pressure: 30 psig / 2.1 bar |
Outlet Pressure Ranges | 9 to 13 inches w.c. / 22.4 to 32.4 mbar spring range |
Capacity | Up to 2.6 MBTU/hr |
Vent Size | 3/4 NPT screened |
Pressure Registration | Internal |
Temperature Capabilities | -20° to 160°F / -29° to 71°C |
Approximate Weight | 4.5 Pounds / 2 kg |
