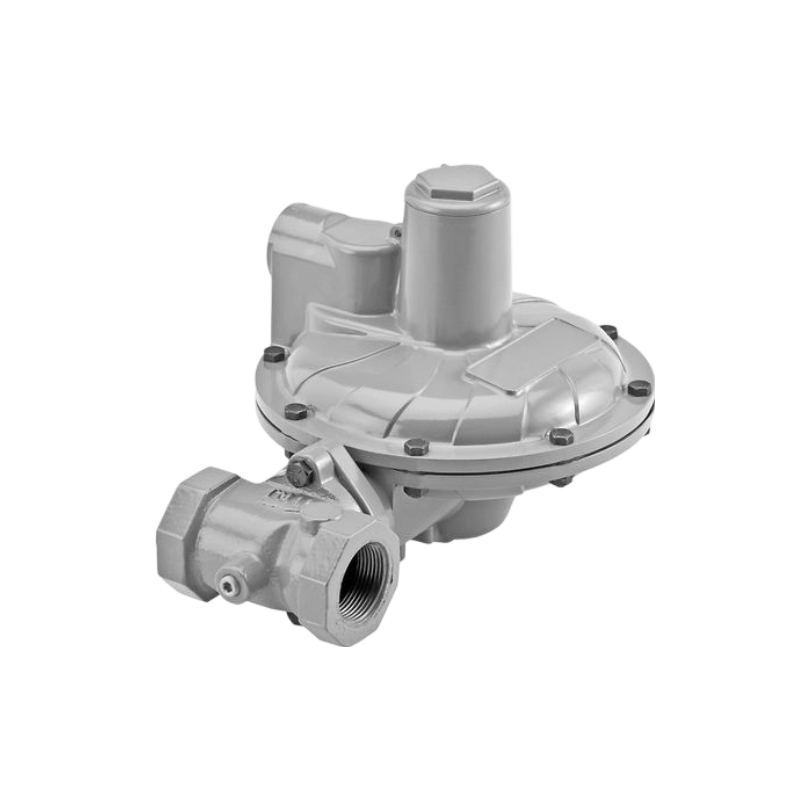

Fisher CS200 Series Pressure Reducing Regulators
Fisher CS200 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. Options include numerous body sizes, outlet pressure settings, and orifice sizes. CS200 offers ease of maintenance and installation with its full 360-degrees of rotation of the actuator via the union ring connection between the body and casing.
Features
1.Wide Range of NPT Body Sizes and End Connections
2.Easy to Install and Maintain
3.Only Standard Tools Required for Pressure Adjustment and Orifice Removal
4.Fixed Factor Accuracy (PFM Approved)
5.Application Flexibility including Internal Relief, Non-Relieving, and Secondary Seat™ Protection
6.Secondary Seat Protection provides a secondary seating and disk surface in the event that damage to the primary disk or orifice seat or debris in the flow path inhibit lockup
Specifications
Available Configurations | Stand-Alone Regulator, Non-relief, Internal Relief, Internal Pressure Registration, Secondary Seat, Secondary Seat with Bleed |
Body Sizes and End Connection Style | 3/4, 3/4 x 1, 3/4 x 1-1/4, 1, 1 x 1-1/4, 1-1/4 NPT |
Maximum Inlet Pressure | 175 psig / 12.1 bar |
Outlet Pressure Ranges | 3.5-inches w.c. to 2.0 psig / 9 mbar to 0.14 bar in eight ranges |
Temperature Capabilities | -20 to 150°F / -29 to 66°C |
Approximate Weight | 8 Pounds / 4 kg |
Hydrogen (H2) Service | The CS200 family was validated for hydrogen service through extensive high pressure hydrogen testing to analyze sealing performance and material compatibility. For additional details regarding the evaluation and testing, please refer to “Blending Hydrogen with Natural Gas : Technical Factors to Consider”. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
