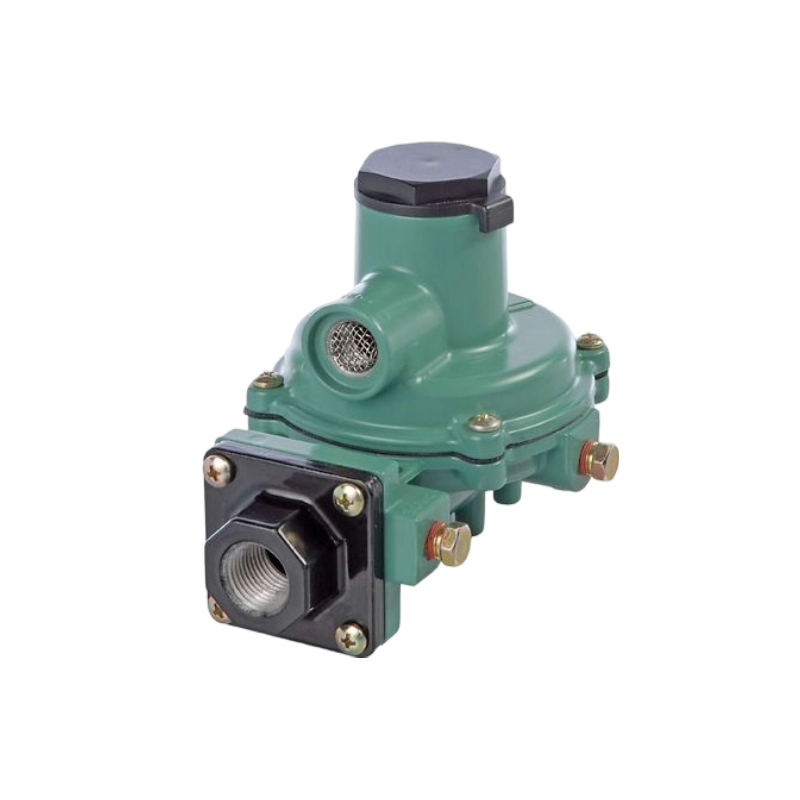

Fishe Type R222 Series Second-Stage Regulators
R222 Series is an Underwriters Laboratories listed regulator designed for Two-Stage LP-Gas systems. The unit is designed to reduce the outlet pressure from a first-stage regulator (usually 10 psig / 0.69 bar) to an outlet pressure of 11-inches w.c. / 27 mbar. The unit's compact size makes it ideal for tight fit applications. A screened drip-lip vent is oriented over the inlet in the standard configuration. Fisher second-stage regulators are painted palm green for easy identification.
Features
1.Improved Accuracy
2.Superior Relief Performance
3.Corrosion-Resistant Materials
4.Inlet Screen
5.Test Ports for Easy System Checks
6.Positive Drainage
7.20-Year Recommended Replacement Life
8.UL Listed
Specifications
Body Sizes and End Connection Styles (inlet x outlet) | 1/2 x 1/2-inch NPT |
Maximum Inlet Pressures | Maximum Inlet Pressure: 10 psig / 0.69 bar Emergency Inlet Pressure: 75 psi / 5.2 bar when used with Types R122H, R222H or R622H first stage regulator; 40 psi / 2.8 bar when used with any other first stage regulator. |
Outlet Pressure Ranges | 9.5 to 13 inches w.c. / 24 to 32 mbar spring range |
Capacity | 650,000 BTU/hr |
Vent Size | 3/8 NPT screened |
Pressure Registration | Internal |
Temperature Capabilities | -20° to 160°F / -29° to 71°C |
Approximate Weight | 1.4 Pounds / 635 g |
