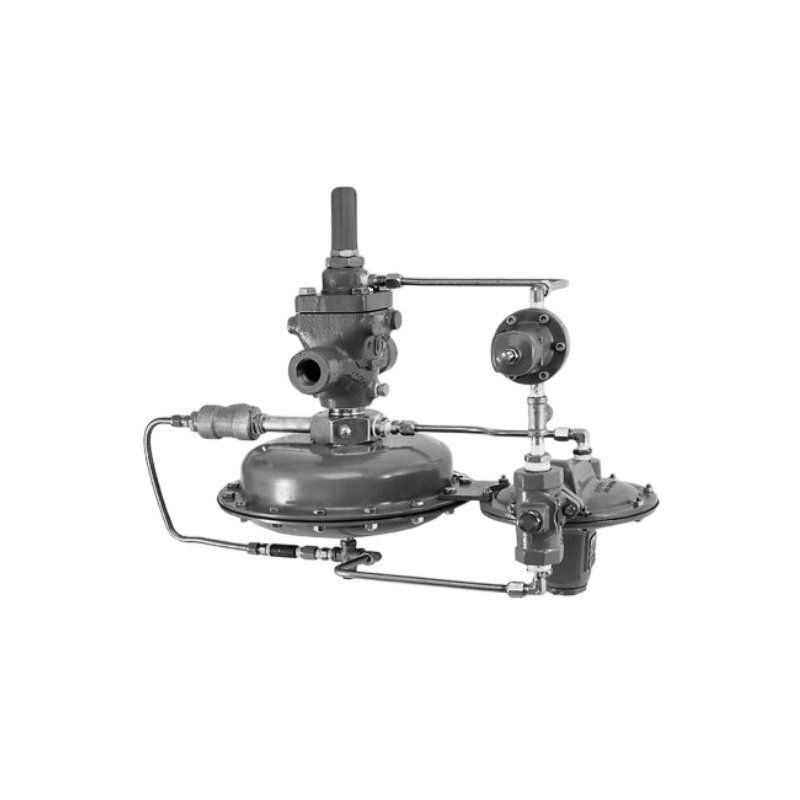

Fisher Type 1190 Low-Pressure Gas Blanketing Regulator
Type 1190 low-pressure gas blanketing valve is a pilot-operated, pressure reducing valve with a supply pressure regulator. This valve is used for extremely accurate pressure control on very low pressure gas blanketing systems.
Features
1.Quick-Change Trim Package
2.In-Service Travel Inspection
3.Easy In-Line Maintenance
4.Factory-Piped Pilot Supply
Specifications
Body Sizes | NPS 1, 2 / DN 25, 50 NPS 3, 4, 6 / DN 80, 100, 150 NPS 8 x 6, 12 x 6 / DN 200 x 150, DN 300 x 150 |
End Connection Styles | NPT, SWE, BWE, CL125 FF, CL150 RF, CL250 RF, CL300 RF, CL600 RF, PN 16/25/40 |
Material Types | Cast Iron, WCC Steel or CF8M Stainless Steel |
Maximum Inlet Pressure | 200 psig / 13.8 bar with cast iron construction 300 psig / 20.7 bar with steel or stainless steel construction |
Maximum Outlet (Casing) Pressure | 75 psig / 5.2 bar |
Outlet Pressure Ranges | 0.25-inch w.c. to 7 psig / 0.6 mbar to 0.48 bar in seven ranges |
Pressure Registration | External |
Temperature Capabilities | NBR: -20 to 180°F / -29 to 82°C FEP: -20 to 180°F / -29 to 82°C FKM: 40 to 300°F / 4 to 149°C EPDM: -20 to 275°F / -29 to 135°C FFKM: -20 to 300°F / -29 to 149°C |
Approximate Weights | NPS 1 / DN 25: 85 lbs / 39 kg NPS 2 / DN 50: 100 lbs / 45 kg NPS 3 / DN 80: 145 lbs / 66 kg NPS 4 / DN 100: 195 lbs / 88 kg NPS 6 / DN 150: 380 lbs / 172 kg NPS 8 x 6 / DN 200 x 150: 740 lbs / 336 kg NPS 12 x 6 / DN 300 x 150: 1265 lbs / 574 kg |
Position Monitor Bracket (PMB) Specifications | Construction Materials Bracket: 304 Stainless steel Hardware: 18-8 Stainless steel |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
Pictures show
