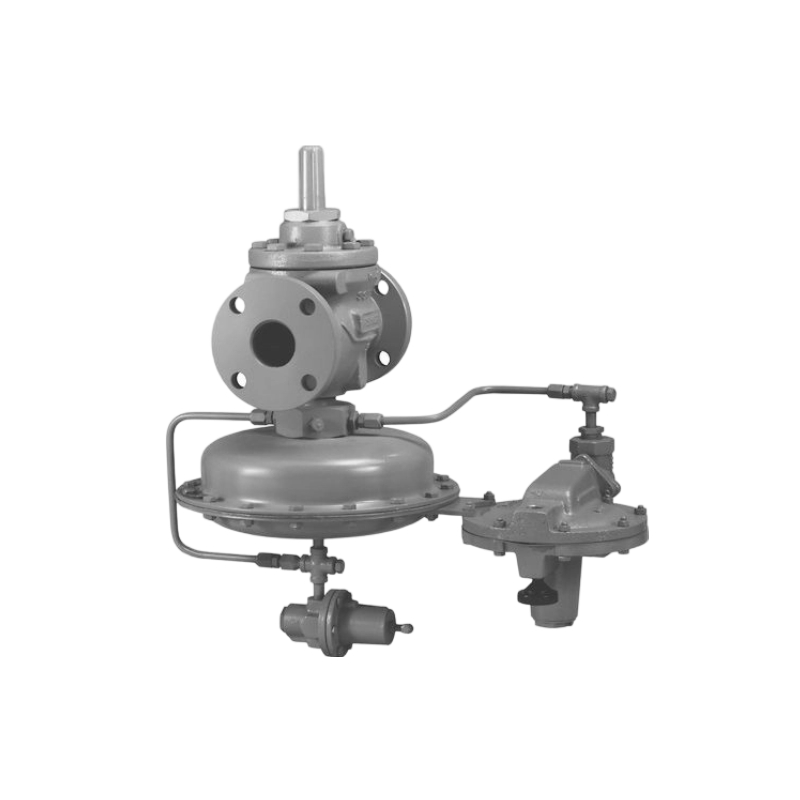

Fisher Type 1290 Vapor Recovery Regulator
Type 1290 vapor recovery regulator is a self-contained, pilot-operated regulator system used for vapor recovery blanketing gas.The Fisher Type 1290 Vapor Recovery Regulator is a high-performance, rugged regulator designed for vapor recovery applications in storage tanks, tanker loading, and petroleum handling systems. It provides reliable pressure control, prevents excessive pressure buildup, and ensures safe and efficient vapor recovery in demanding industrial environments. Built for long service life and stable operation, it is widely used in oil and gas, refining, and chemical processing facilities.
Features
1.Quick-Change Trim Package
2.Easy In-Line Maintenance
3.In-Service Travel Inspection
4.High Accuracy
5.Proven Technology
Specifications
Body Sizes | NPS 1 or 2 / DN 25 or 50 NPS 3, 4, or 6 / DN 80, 100 or 150 NPS 8 x 6 or 12 x 6 / 200 x 150 or 300 x 150 |
Materials and End Connections | Cast Iron: NPT, CL125 FF or CL250 RF flanged WCC Steel or CF8M Stainless Steel: NPT, SWE, BWE, CL150 RF, CL300 RF, CL600 RF, or PN 16/25/40 flanged |
Maximum Inlet Pressure (Type EGR Main Valve) | 12.5 psig / 0.86 bar |
Outlet Pressure Ranges | 1/2-inch w.c. to 7-psig / 1.2 mbar to 0.48 bar in eight ranges |
Pressure Registration | External |
Temperature Capabilities | NBR: -20 to 180°F / -29 to 82°C FKM For inches w.c.: 40 to 300°F / 4 to 149°C For psig: 0 to 300°F / -18 to 149°C EPDM: -20 to 275°F / -29 to 135°C FFKM: -20 to 300°F / -29 to 149°C |
Approximate Weights | NPS 1 / DN 25: 85 lbs / 39 kg NPS 2 / DN 50: 100 lbs / 45 kg NPS 3 / DN 80: 145 lbs / 66 kg NPS 4 / DN 100: 195 lbs / 88 kg NPS 6 / DN 150: 380 lbs / 172 kg NPS 8 x 6 / DN 200 x 150: 740 lbs / 336 kg NPS 12 x 6 / DN 300 x 150: 1265 lbs / 574 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
