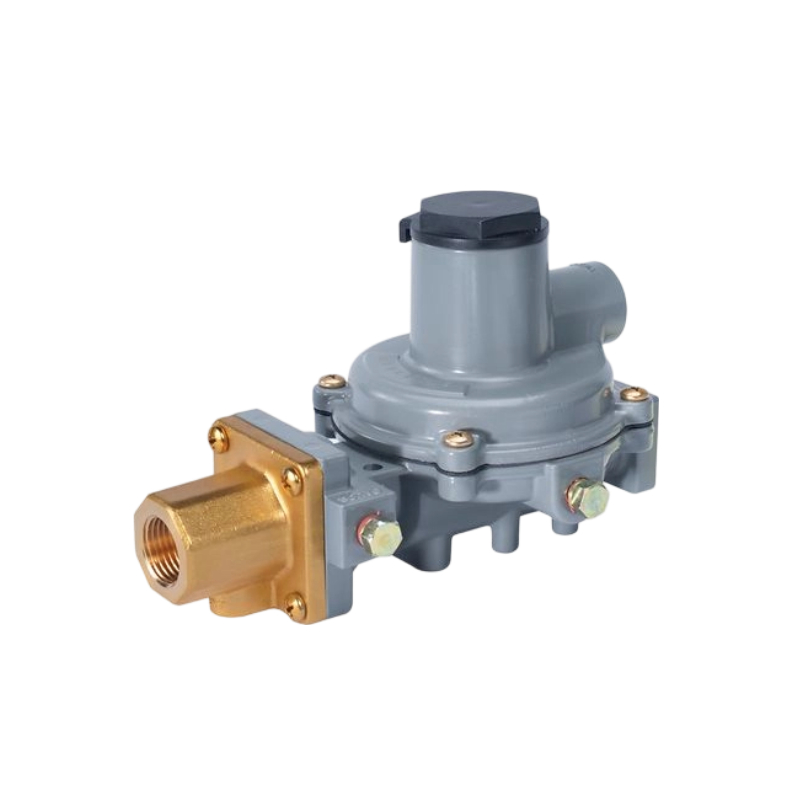

Fisher Type R232A Integral Two-Stage Regulator
The Type R232A is an Underwriters Laboratories (UL) listed regulator designed for LP-Gas systems. The unit is designed to reduce the tank pressure to an outlet pressure of 11 inches water column through an integral two-stage system. Designed for installations with small domestic loads. The units compact size makes it ideal for tight fit applications. The first-stage screened drip-lip vent is oriented downward and the second-stage vent is oriented over the outlet as standard.
Features
1.20-Year Recommended Replacement Life
2.Inlet/Outlet Gauge Taps for easy system checks
3.Improved Regulation
4.Easy Installation
5.Superior Overpressure Protection
6.Corrosion-Resistant
7.Positive Draining Spring Case
8.Durability
Specifications
Body Sizes and End Connection Styles (inlet x outlet) | 1/4 inch x 1/2 inch FNPT, FPOL x 1/2 inch FNPT |
Maximum Allowable Inlet Pressure | 250 psig / 17.2 bar |
Outlet Pressure Ranges | 10.2 – 13 inches w.c. / 25 – 32 mbar |
Capacity | 550,000 BTU/hr |
Vent Size | 1st Stage : 7/16-24 Inverted Flare 2nd Stage : 3/8 NPT screened |
Temperature Capabilities | -20° to 160°F / -29° to 71°C |
Approximate Weight | With FPOL: 1.9 lbs / 865 g With NPT fitting: 1.5 lbs / 671 g |
