Features

1.With the cover removed, zero span and cross-over adjustments are easily accessible and can be made with a screw driver.

2.Easily adjustable minor loop gain fine tunes the positioner to optimize dynamic response for each specific actuator size and application.

3.Changes in supply pressure have minimal effect on positioner operation.

4.Simple adjustments permit switching between direct and reverse action; no additional parts are required.

Specifications

Communication Protocol

3-15 or 6-30 psi, 0.2 -1.0 or 0.4 -2.0 bar Pneumatic Signal

Diagnostics

No

Input Signal

Pneumatic

Mounting Type

Actuator Mounted

Operating Temperature

Standard Temperature

Position Control

Modulating

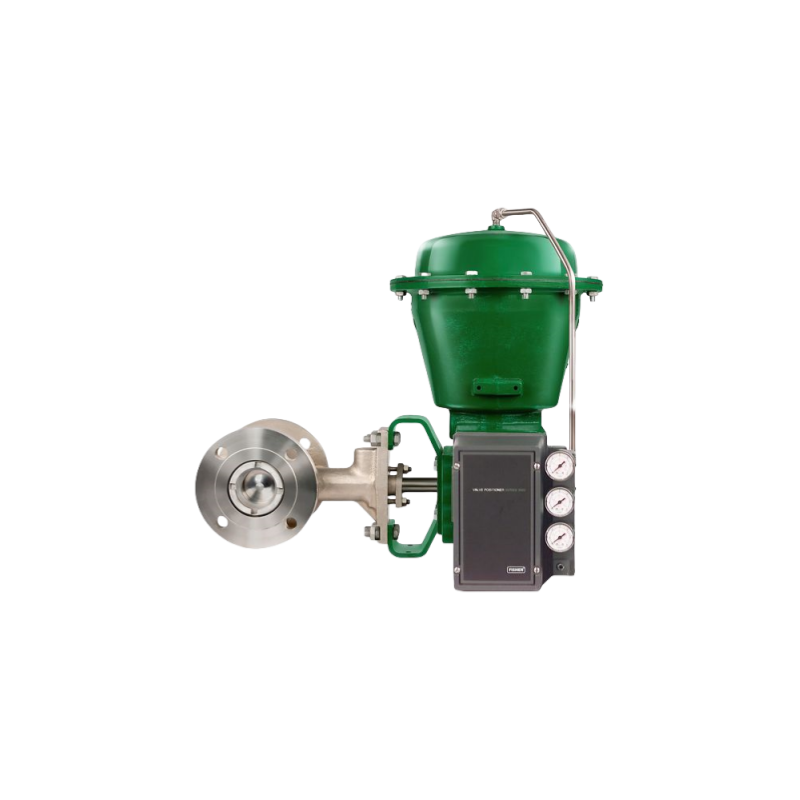

Pictures show
